Concrete Base Calculator UK — Volume, Bags & Cost

This concrete base calculator works out how much concrete you need for any shed base, garage base, or patio. Enter your dimensions and get volume in cubic metres, 25kg and 20kg bag counts, material quantities for mixing from scratch, and a total cost estimate.

Concrete Base Calculator

Choose a project type to load standard dimensions, or enter your own. Results include volume, bag counts, and material breakdown.

%
£
£

Results

Concrete Volume

0.47

incl. waste allowance

Total Weight

1,134 kg

25kg Bags Needed

40

× 25kg premixed bags

20kg Bags Needed

50

× 20kg premixed bags

Est. Cost (25kg bags)

£198.00

Est. Cost (20kg bags)

£225.00

Material Breakdown: 1:2:4 Mix (C20)

For mixing from scratch. Use these figures to order cement, sharp sand, and ballast separately.

Cement

150 kg

6 × 25kg bags

Sharp Sand

330 kg

Ballast

565 kg

Tip: Results include your waste allowance. For bases over 1m³, ready-mix delivery is faster and often cheaper than mixing bags by hand.

How to Use the Concrete Base Calculator

1

Choose your project type

Select Shed Base, Garage Base, or Patio Base. The calculator fills in standard UK dimensions automatically.

2

Adjust the dimensions

Change length, width, and depth to match your project. Use the dropdown next to each field to switch units. Your preference from Settings is loaded automatically.

3

Read your results

See concrete volume, 25kg and 20kg bag counts, material quantities for mixing from scratch, and total cost.

How to Calculate Concrete for a Base

Concrete being poured for a garden base slab

The calculation follows a simple formula: length × width × depth. All measurements in metres. A 2.4m × 1.8m shed base at 100mm (0.1m) thick gives 2.4 × 1.8 × 0.1 = 0.43 cubic metres of concrete.

Add 10% for waste. Uneven ground, concrete sticking to your wheelbarrow, and slight variations in depth all consume material you did not plan for. So 0.43m³ becomes 0.47m³ to order.

Dry premixed concrete weighs around 2,100kg per cubic metre. Divide that by your bag size to get your count: 0.47m³ × 2,100 = 987kg, divided by 25 = 40 bags of 25kg. At £5 a bag, that is £198 in materials before hardcore or tools.

Volume adds up fast with larger projects. A single-garage base at 6m × 3m × 100mm is 1.8m³, needing 166 bags or about 4.1 tonnes of concrete. At that volume, a ready-mix lorry beats hand-mixing by a long way.

Concrete Mix Ratios for Garden and Garage Bases

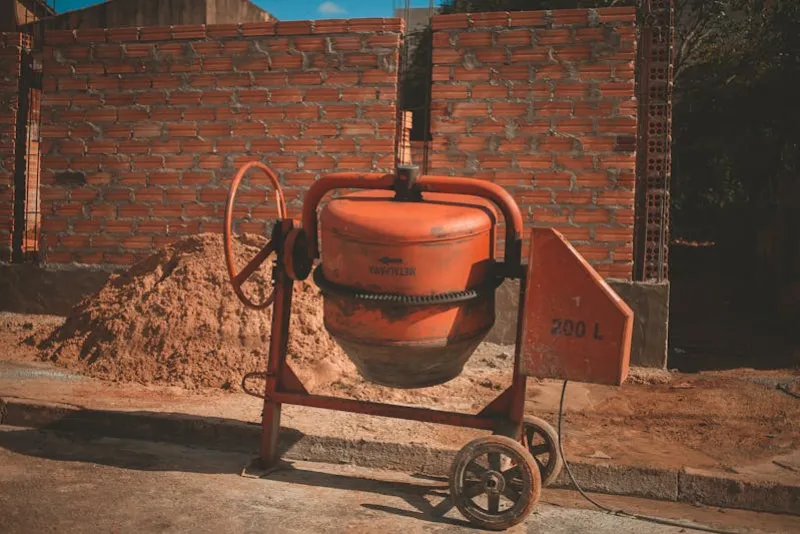

Orange concrete mixer with sand pile at a UK construction site for mixing concrete

Mix ratio determines the strength of your finished base. Two ratios cover almost all UK domestic projects.

A 1:2:4 mix (cement:sand:ballast by volume) produces C20 strength, rated at 20 N/mm² compressive strength. This suits shed bases, garden paths, patios, and light footings. Most shed base calculators default to C20 for good reason: it handles domestic foot-traffic loads without cracking.

A 1:2:3 mix gives C25. Use this for garage bases and driveways where vehicles park regularly. The extra cement tightens the matrix and resists freeze-thaw cycles better over winter.

For mixing from scratch, the material breakdown in the calculator above shows how much cement, sand, and ballast you need. For a 0.9m³ patio base (3×3m at 75mm), that is roughly 288kg of cement, 630kg of sharp sand, and 1,080kg of ballast. Buying a tonne bag of ballast and separate 25kg cement bags works out cheaper than premixed once you pass 0.7m³.

If you are buying premixed bags from B&Q, Wickes, or Jewson, the proportions are already correct inside the bag. Enter your dimensions into the concrete base calculator, choose premixed, and use the bag count directly.

Shed Base, Garage and Patio: Common UK Sizes

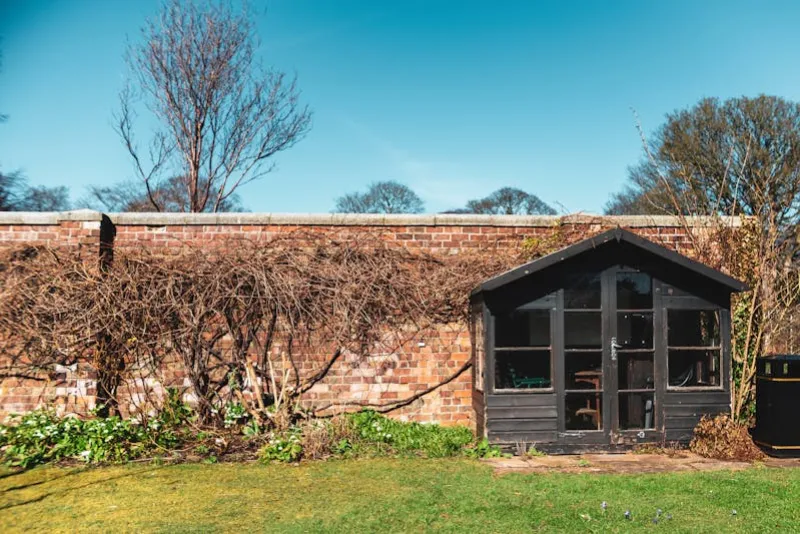

Dark timber garden shed in a British walled garden with neat lawn

These figures use 25kg bags with 10% waste at 100mm depth unless noted. Use the concrete base calculator to adjust for your actual dimensions.

ProjectSizeDepthVolume (m³)25kg Bags
Small shed base2.4m × 1.8m100mm0.4740
Medium shed base3m × 2.4m100mm0.7967
Large shed base4m × 3m100mm1.32111
Patio base3m × 3m75mm0.7462
Patio base4m × 3m100mm1.32111
Single garage base6m × 3m100mm1.98166
Double garage base6m × 6m100mm3.96333

A double garage base at 333 bags is about 8.3 tonnes of concrete. Nobody mixes that by hand in a single day. For anything over 2m³, ring a local ready-mix or mini-mix supplier for a quote. The time saving alone is worth it.

Tips for Ordering and Laying a Concrete Base

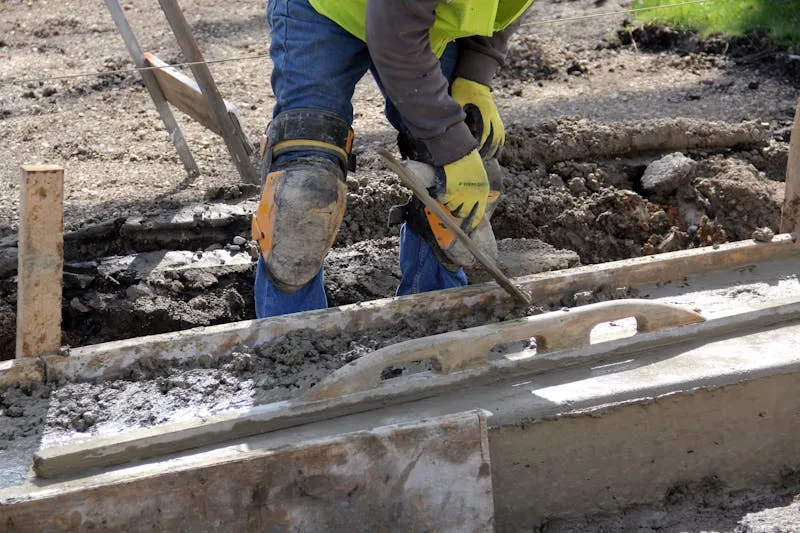

Worker smoothing wet concrete into timber formwork for a garden base

Add 15% waste instead of 10% if your excavation is uneven or your formwork boards are not perfectly level. Rough edges consume concrete faster than you expect.

For orders over 20 bags, use a builders merchant rather than a DIY chain. Jewson and Travis Perkins price by the pallet at trade rates, and delivery is often free on orders above a certain value. Split a pallet with a neighbour if the quantity is too large for your project.

Steel mesh reinforcement (A142 mesh, 200mm squares, 6mm wire) is not needed for shed bases or patios, but it does reduce cracking in garage slabs where vehicles park. Lay the mesh on plastic spacers 25mm above the sub-base so it sits in the middle third of the concrete depth.

Pour in one continuous session. Stopping partway through creates a cold joint where the two pours meet. That line is always weaker than the surrounding concrete. If you cannot complete the pour in one go, hire a concrete lorry or work in smaller sections with proper expansion joints between them.

For larger bases, also check our concrete slab calculator if you need volume without the project presets, or our footing calculator for strip and pad foundations.

Related Concrete Calculators

Concrete Base Calculator FAQ

Common questions about calculating concrete for shed bases, garage bases, and patios in the UK

For a standard 2.4m × 1.8m shed base at 100mm thick, you need 0.43 cubic metres of concrete. With 10% waste added, order 0.47m³, which works out to roughly 40 bags of 25kg premixed concrete.

A larger 3m × 2.4m shed base at 100mm needs about 0.72m³, or 61 bags. Use the concrete base calculator above for your exact dimensions. The shed base preset fills in standard measurements automatically.

Always round up rather than down. Running short mid-pour creates a cold joint that weakens the finished slab.
